WA 290 automation systems

Belimed’s automation solutions complement the highly effective WD 290 IQ washer-disinfectors to increase throughput in your CSSD and reduce the workload for your staff.

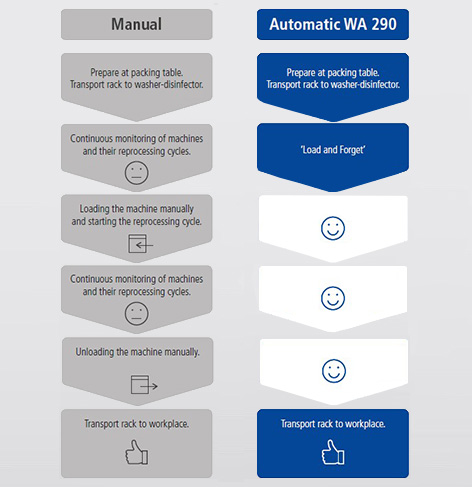

The WA 290 automation systems intelligently coordinate loading and unloading processes between various hygiene zones. Customers to choose the system, which best fits their space and throughput requirements. The system can also be adapted to changing requirements during the lifecycles of the washer and the automation system.

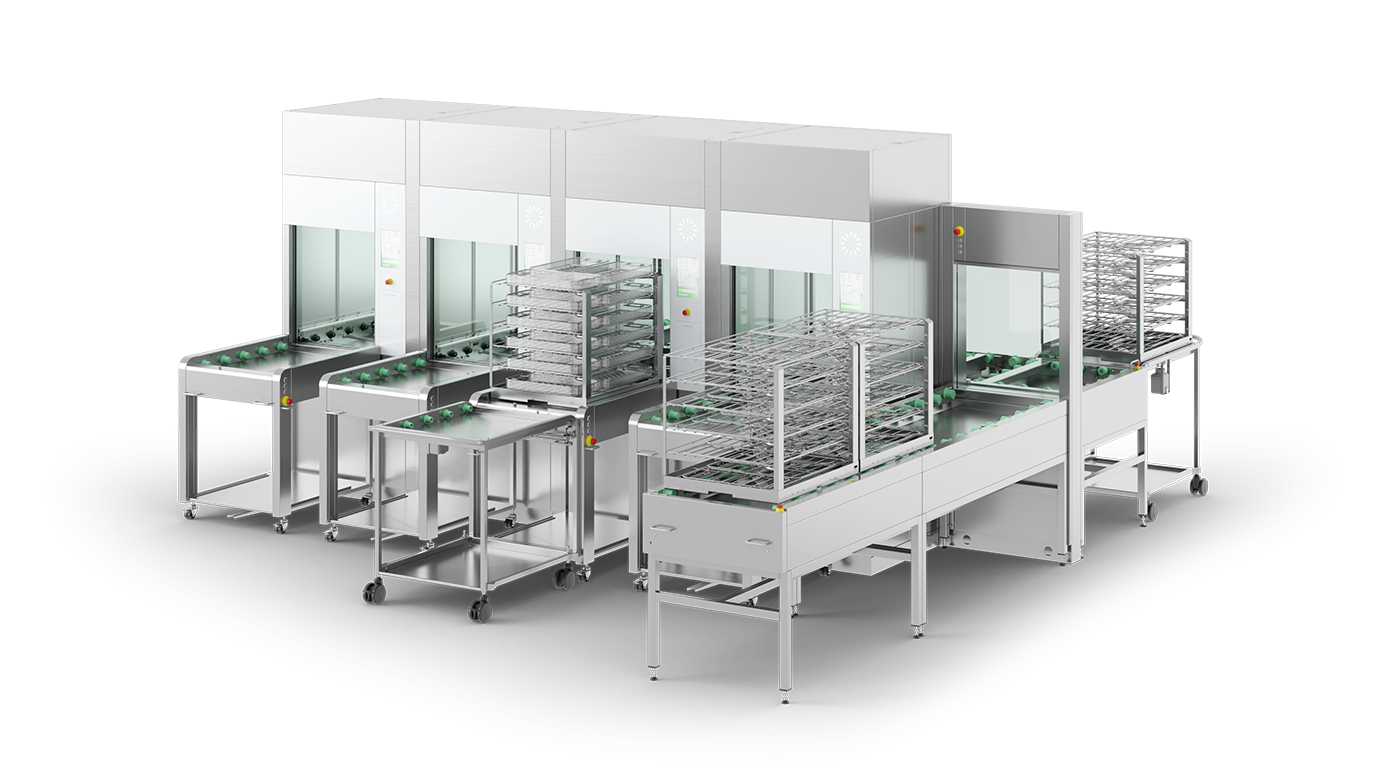

Belimed WD 290 Automation System

Belimed’s WA 290 Automation Portfolio

#WA 290 Closed Loop

WA 290 CL

Closed Loop



The WA 290 Closed loop (CL) is a fully configurable automation system, with the capacity to load up to eight washers with one shuttle. When combined with an automatic
program recognition in the WD 290 IQ washer-disinfectors, the WA 290 CL will take care of the washing goods on its own, once placed on the loading queue. The closed loop system allows the racks to be kept "in the loop" without needing to be removed.

#WA 290 Direct Docking



WA 290

Direct Docking



The WA 290 Automation System is also available with direct docking for both the return transport module (to remove the racks) and the loading modules stretch (to load the racks). All the variants from the closed loop system can also be ordered with direct docking option.

#WA 290 SO straight-out unloading



WA 290 SO

Straight-out unloading



The WA 290 SO straight-out unloading system combines the WA shuttle loading system with decentralized unloading: each washer-disinfector has its own “straight-out” unloading module, allowing for easier transfer of the cleaned items to the packing tables if space allows.

#WA 290 SI – Straight-in Loading with Return Transport



WA 290 SI

Straight-in loading with return transport



The WA 290 SI straight-in loading system is designed for CSSDs with space restraints. By combining the SISO straight-in modules on the loading side and the cross-conveyor modules and a centralized unloading space, the needed space is reduced to a minimum. The individually configurable rack return modules with the Gate-S are an integral part of the WA 290 SI system.

#RT-Sys

RT-Sys

Belimed’s return transport system



In a high-volume CSSD, where throughput and efficiency play an important role, Belimed’s return transport system comes into its own. It is available as an optional part for the WA 290 (direct dock) and the WA 290 SO. The RT-SYS return transport system can be configured to your needs, with elements of varying lengths on the contaminated and decontaminated sides. Depending on your hygiene requirements, you can choose between a gate (single door) or a double gate (sluice) for separating the two sides.
