Sterilizer Automation
The TS MST transport system allows safe, ergonomic and easy handling of materials when using Belimed’s MST-V 09.02 steam sterilizers. Belimed’s sterilizers are equipped with a comprehensive set of manual and automated load/unload accessories, tailored to each model. These accessories are designed to enhance workflow efficiency and adapt to various load configurations. The system includes an automatic loading/unloading unit that enables fully automated handling of the sterilizer, a queue line to facilitate a streamlined process.

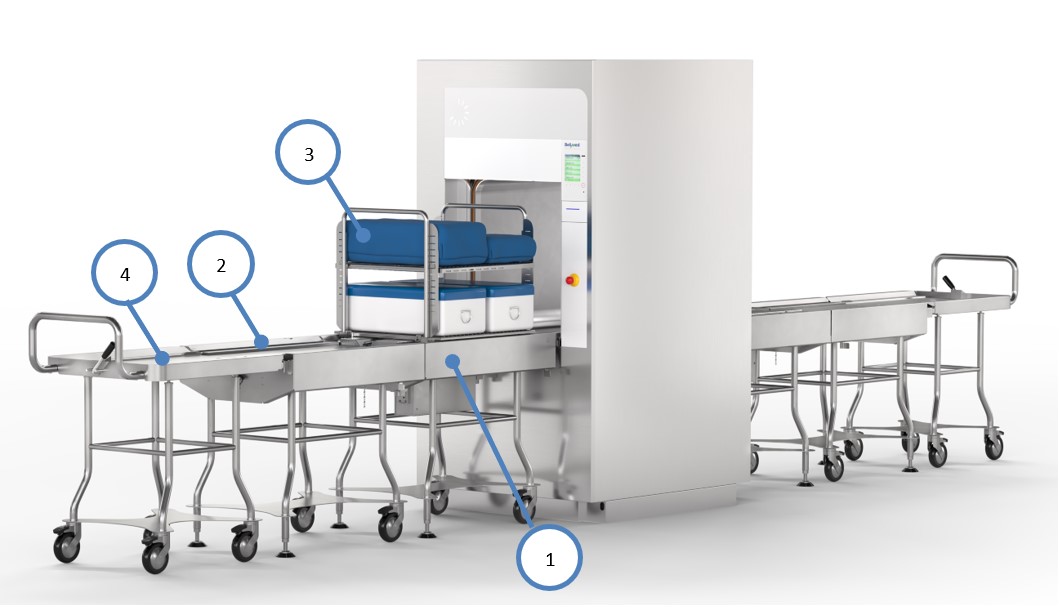

The TS MST transport system elements include:
1. Automatic loading/unloading unit
2. Queue line
3. Batch cart
4. Transport cart
Features
- Optimized workflow: The automatic loading unit takes the batch cart either directly from the transport cart or from the queue line and loads it into the sterilizer in several steps.
- Automatic batch cart loading/unloading capability: Each model comes with a size-specific loading rack, which has adjustable shelves to accommodate different sizes of containers or wraps.
- Compatibility: The TS MST is compatible with the sterilizers of the MST-V 09.02 series and the existing TS 16 transport and batch carts.
- Hands-free operation: After docking the loaded transport cart, the batch cart is automatically transported into the sterilizer and the sterilization process starts automatically without any further input from the operator.
- Batch cart tracking system: To ensure high process reliability, the position of the batch carts is tracked by sensors throughout the entire loading and unloading process.
- Ergonomical design: The loading height is set for optimum loading and unloading, thus preventing staff back strain and avoiding repetitive motion.
- Easy maintenance: For cleaning or maintenance work, the automatic loading/unloading unit can be easily disconnected from the sterilizer in a few simple steps without tools.
